Starter Control Panel

Discover the strength and durability of our Starter Control Panel, expertly engineered by our experienced team with over 24 years in the industry as a trusted manufacturer, supplier, and service provider. Boasting an elite line-up including the DOL Starter Control Panel, Industrial Pump Starter Control Panel, and Star Delta Pump Starter Control Panel, our solutions stand at the forefront of reliability, safety, and efficiency for all industrial pumping applications across India. Experience the astounding performance of our panels, designed for easy installation, long operational life, superior overload protection, customizable features to meet your precise requirements, and exceptional energy efficiency. Get your hands on these spectacular products, which offer stringent quality assurance, innovative design, and robust build compared to ordinary alternatives. Perfect for a wide range of applications, our Starter Control Panels come with limited stock and all-India supply ability, ensuring you won't miss out on this opportunity to elevate your operations with customizable and top-of-the-line technology.

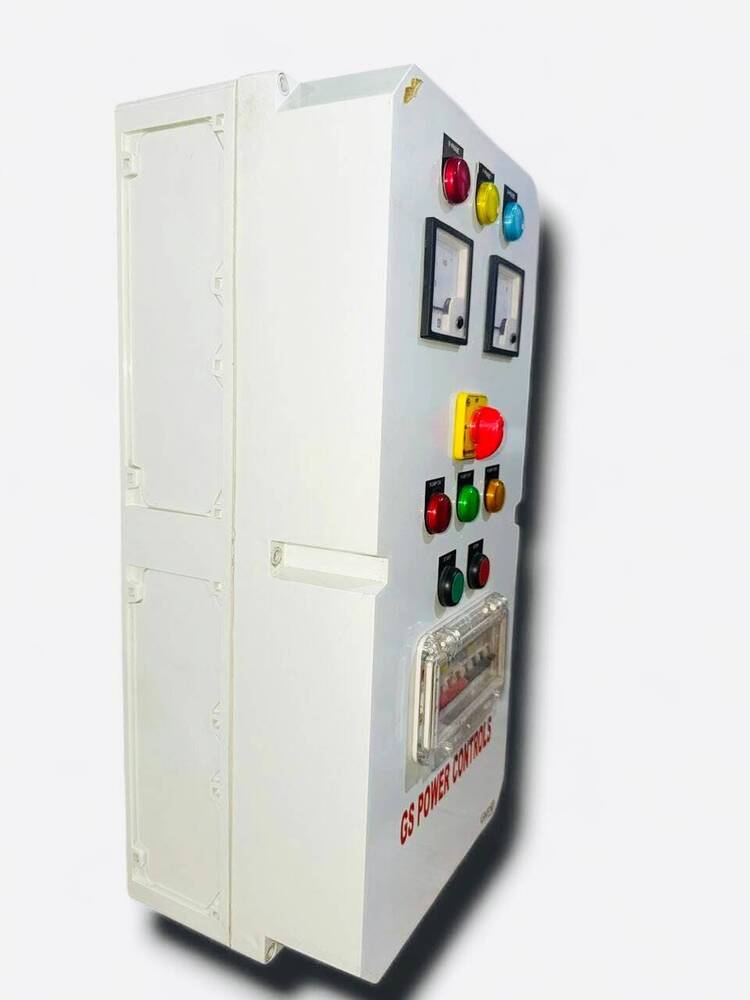

Dol Starter Control Panel

MOQ : 1 Unit

Application
Motor Starter

Base Material
Mild Steel

Cabinet Material
Mild Steel

Components
MCB, Voltmeter, Ammeter, Indication Lamps, Start/Stop Button, Terminal Blocks

Connectivity Type
Hard Wired

Control System
Direct On Line (DOL)

Cooling System
Natural Air Cooled

Cover Material
Other, Powder Coated MS

Current Rating
32A

Dimension (L*W*H)
500mm x 300mm x 200mm

Display Type
Other, Analog Meter Display

Features
Rust-resistant, Durable, Easy Installation, Short circuit protection

Frequency (MHz)
50 Hz

IP Rating
Ip54

Material
Other, Mild Steel (MS)

Maximum Output Current
32A

Operating Voltage
220-415V AC

Panel Type
Control Panel

Product Type
Other, DOL Starter Control Panel

Protection Class
Class I

Protection Level
IP54

Rated Current
32A

Rated Insulation Voltage
690V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IS/IEC 60947-4-1

Surface Color
Other, Powder Coated White

Surface Finish
Other, Smooth

Thickness
1.5 mm

Way
Single Phase/Three Phase

Know more

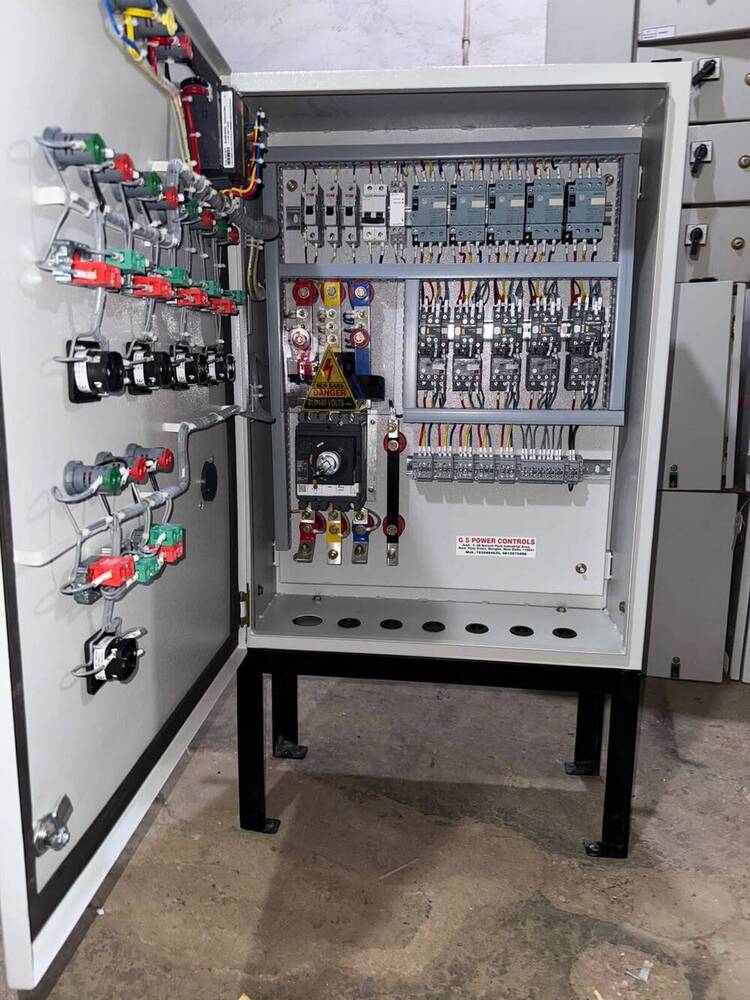

Star Delta Pump Starter Control Panel

MOQ : 1 Unit

Application
Water Pumps, Irrigation, Industrial, Commercial

Base Material
Mild Steel

Cabinet Material
Mild Steel (MS)

Components
MCB, Contactor, Overload Relay, Indicating Lamps, Push Buttons

Connectivity Type
Hardwired

Control System
Automatic & Manual Control

Cooling System
Natural Air Ventilation

Cover Material
Other, Powder Coated Metal

Current Rating
40A, 63A, 80A (As per design)

Dimension (L*W*H)
800 x 600 x 250 mm (Custom Sizes Available)

Display Type
Other, Analog/LED/Amperemeter (If supplied)

Features
Overload Protection, Short Circuit Protection, Phase Failure Protection, Lockable Door, Rust Resistant

Frequency (MHz)
50 Hz

IP Rating
Other, IP54 / IP55

Material
Other, Powder Coated Mild Steel (MS)

Maximum Output Current
60A

Operating Voltage
380-415V AC

Panel Type
Floor Mounted

Product Type
Other, Star Delta Pump Starter Control Panel

Protection Class
Class I

Protection Level
IP54

Rated Current
32A, 40A, 60A

Rated Insulation Voltage
690V

Rated Operation Voltage
415V AC

Rated Voltage
415V AC

Standard
IS/IEC 60947-4-1

Surface Color
Other, Off White/Grey

Surface Finish
Other, Matt, Smooth Powder Coated Finish

Thickness
1.6mm - 2mm (Panel Body)

Way
3 Way or Customization Available

Know more

Industrial Pump Starter Control Panel

MOQ : 1 Unit

Application
Industrial Pump Motor Controls

Base Material
Mild Steel

Cabinet Material
Heavy Duty MS Sheet

Components
MCB, MCCB, Contactors, Overload Relays, Indicator Lamps

Connectivity Type
Hardwired

Control System
Manual/Auto

Cooling System
Natural Air Cooled

Cover Material
Other, Powder Coated Mild Steel

Current Rating
Up to 630A

Dimension (L*W*H)
As per requirement (customizable)

Display Type
Other, Analog/Digital

Features
Short Circuit Protection, Overload Protection, Easy Maintenance

Frequency (MHz)
50 Hz

IP Rating
Ip54

Material
Other, Mild Steel (MS)

Maximum Output Current
Up to 630A

Operating Voltage
380V-440V

Panel Type
Floor Mounted

Product Type
Other, Industrial Pump Starter Control Panel

Protection Class
Class I

Protection Level
IP54

Rated Current
Up to 630A

Rated Insulation Voltage
660V

Rated Operation Voltage
415V

Rated Voltage
415V AC

Standard
IEC/IS Standards

Surface Color
Other, Powder Coated Gray

Surface Finish
Other, Smooth Powder Coating

Thickness
2 mm

Way
Three Way

Know more
