Industrial Control Panel

• Application
• Power Distribution, Industrial Automation, Substations

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Metal

• Components
• Busbars, MCCB, Indicator Lamps, CT, PT

• Connectivity Type
• Copper/Aluminum Busbar Connection

• Control System
• Manual/Auto

• Cooling System
• Natural Air Ventilated

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 800A

• Dimension (L*W*H)
• Customized / As per Design

• Display Type
• Other, Analog/LED Indicators

• Features
• Rust Proof, Easily Installable, Weather Resistant

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 800A

• Operating Voltage
• 415V

• Panel Type
• Floor Mounted

• Product Type
• Other, Bus Bar Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 800A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS Standard

• Surface Color
• Other, Grey (Powder Coated)

• Surface Finish
• Other, Smooth Powder Coating

• Thickness
• 1.6 mm - 2.5 mm

• Way
• Customized/As Per Requirement

• Application
• Power Distribution, Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel Sheet

• Components
• MCB, MCCB, Busbar, Terminal Blocks

• Connectivity Type
• Hardwired

• Control System
• Manual/Automatic Control

• Cooling System
• Natural Ventilation / Optional Fan

• Cover Material
• Other, Powder Coated MS

• Current Rating
• Up to 800A

• Dimension (L*W*H)
• As per customer requirement

• Display Type
• Other, Analog / Digital Meter (optional)

• Features
• Sturdy Construction, Corrosion Resistant, Customisable Layout

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Powder Coated Mild Steel

• Maximum Output Current
• 800A

• Operating Voltage
• 415V

• Panel Type
• Floor Mounted (Indoor/Outdoor available)

• Product Type
• Other, Distribution Control Panel

• Protection Class
• Class I

• Protection Level
• Other, High (up to IP54)

• Rated Current
• Up to 800A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• White

• Surface Finish
• Other, Smooth Powder Coated

• Thickness
• 1.6 mm to 2 mm

• Way
• As per design (Customisable)

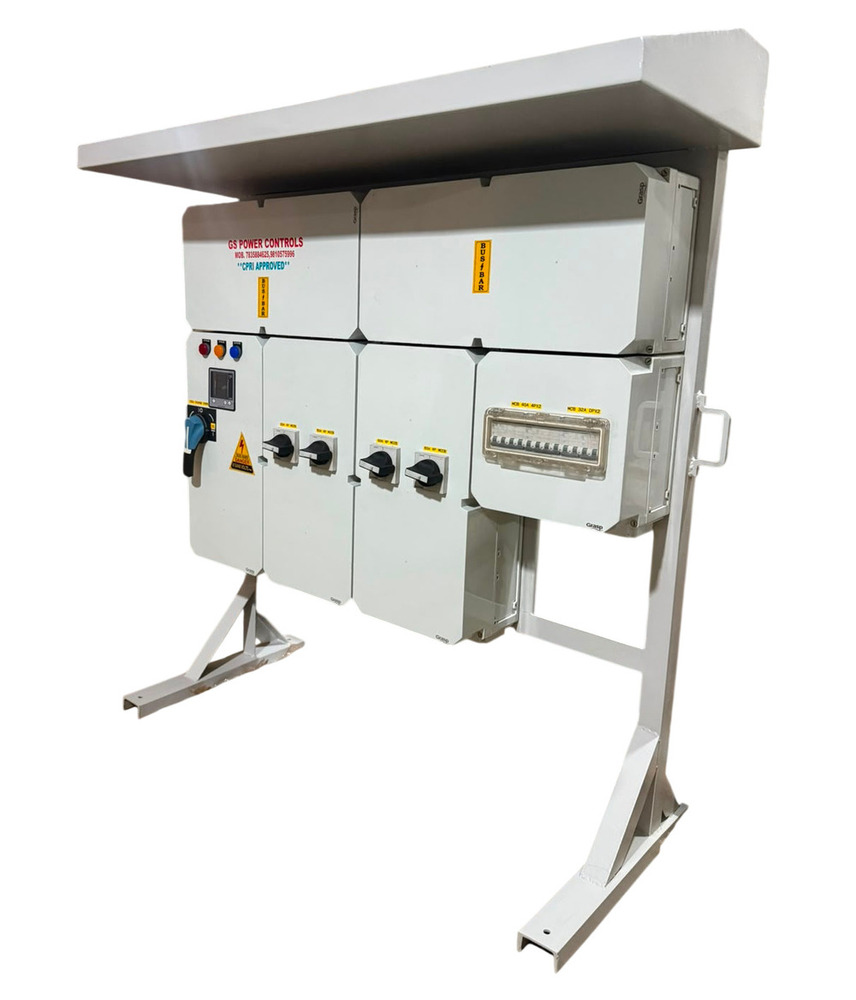

• Application
• Industrial Automation, Power Distribution

• Base Material
• Other, Polycarbonate

• Cabinet Material
• Polycarbonate

• Components
• MCB, MCCB, Indicators, Switches

• Connectivity Type
• Wired

• Control System
• Manual/Electrical

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Polycarbonate

• Current Rating
• Up to 63A

• Dimension (L*W*H)
• Custom/As required

• Display Type
• Other, LED Indicators

• Features
• Corrosion Resistant, UV Stabilized, Weatherproof, Lightweight

• Frequency (MHz)
• 50-60 Hz

• IP Rating
• Other, IP65

• Material
• Other, Polycarbonate

• Maximum Output Current
• 63A

• Operating Voltage
• 220-415V

• Panel Type
• Outdoor/Weatherproof

• Product Type
• Other, Control Panel

• Protection Class
• Class II

• Protection Level
• IP65

• Rated Current
• Up to 63A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 220/415V AC

• Standard
• IEC/IS Standards

• Surface Color
• White

• Surface Finish
• Other, Smooth Finish

• Thickness
• 2-3 mm

• Way
• Multi-way

• Application
• Fire Fighting, Commercial, Industrial use

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet

• Components
• MCB, MCCB, Contactor, Relay, Indicating Lamps, Push Buttons

• Connectivity Type
• Hardwired

• Control System
• Automatic/Manual Switch Over

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Analog/Digital Meter

• Features
• Easy installation, Rust resistant, Durable, Shockproof construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Other, Sheet Metal

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Fire Pump Control Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP55

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Smooth Powder Coating

• Thickness
• 1.6-2.0 mm

• Way
• 3 Way / Custom Options

• Application
• Industrial Power Distribution, Mains/Generator Changeover

• Base Material
• Mild Steel

• Cabinet Material
• Pre-Treated Mild Steel

• Components
• MCB, MCCB, Contactor, Overload Relay, Indicating Lamps, Digital Meters, Busbar, Terminal Blocks

• Connectivity Type
• Hardwired, Optional Remote Monitoring

• Control System
• Automatic / Manual Changeover

• Cooling System
• Air Ventilation / Optional Exhaust Fan

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• Available up to 3200A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Digital Multi-function Meter

• Features
• Sturdy Construction, Easy Installation, Durable, Excellent Performance, Corrosion Resistant

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel / CRCA Sheet

• Maximum Output Current
• Up to 3200A

• Operating Voltage
• 415V

• Panel Type
• Double Door, Floor Mounted

• Product Type
• Other, Automatic Changeover Control Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54 / IP55

• Rated Current
• 100A - 3200A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 440V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey / Siemens Grey

• Surface Finish
• Other, Smooth Powder Coated

• Thickness
• 1.6mm - 2.5mm

• Way
• 3 / 4 / 8 / 16 Way (Customizable)
